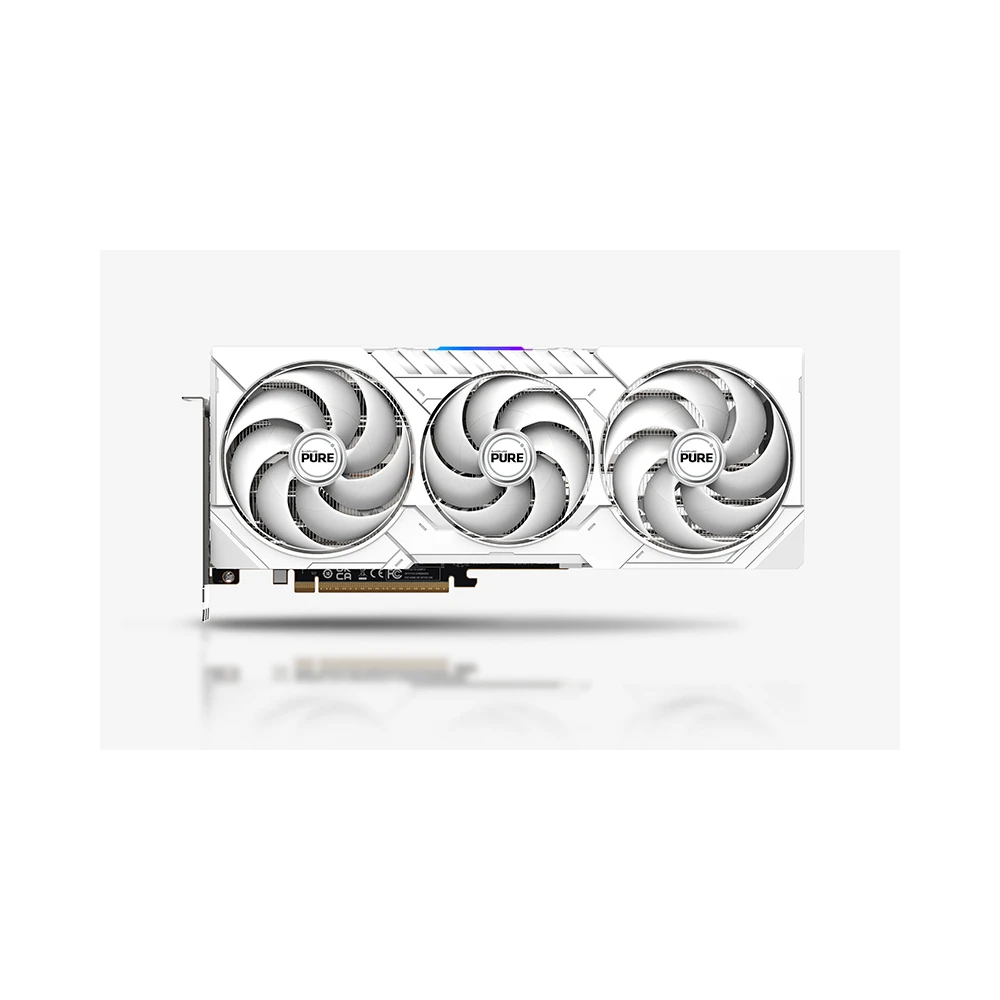

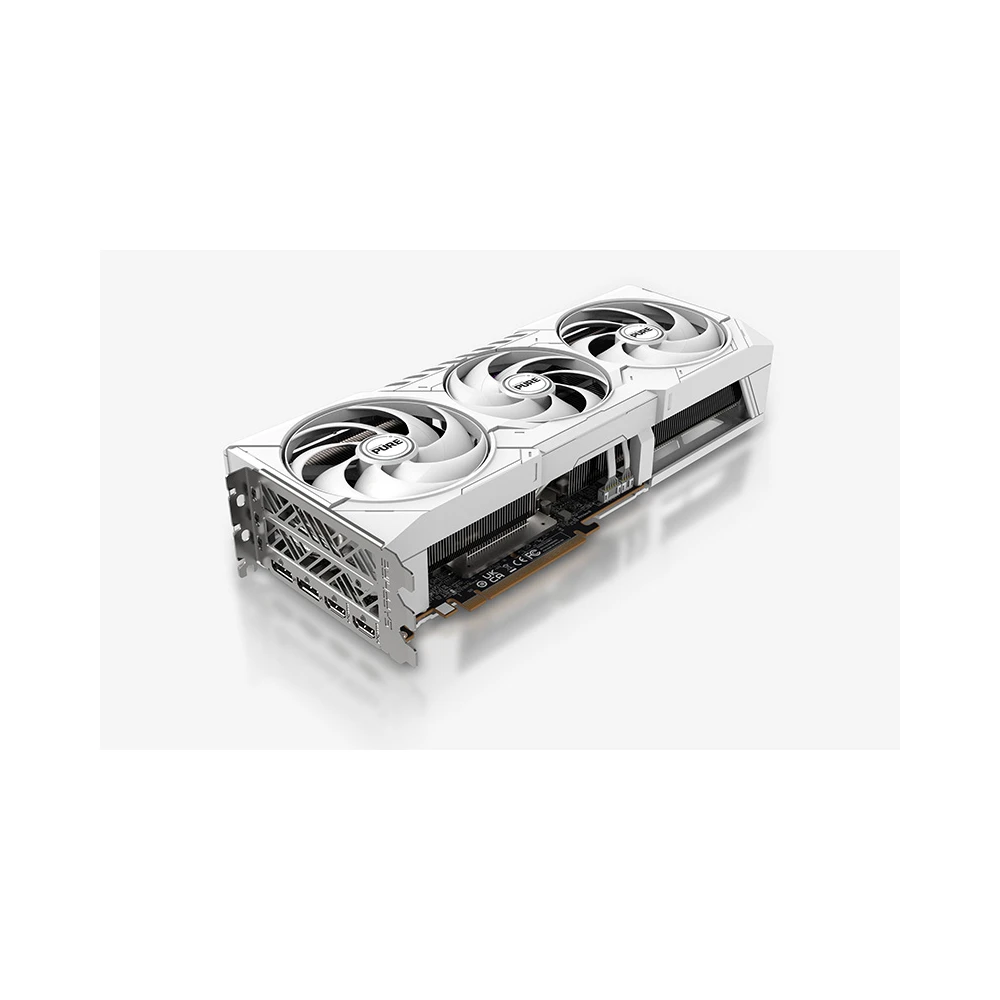

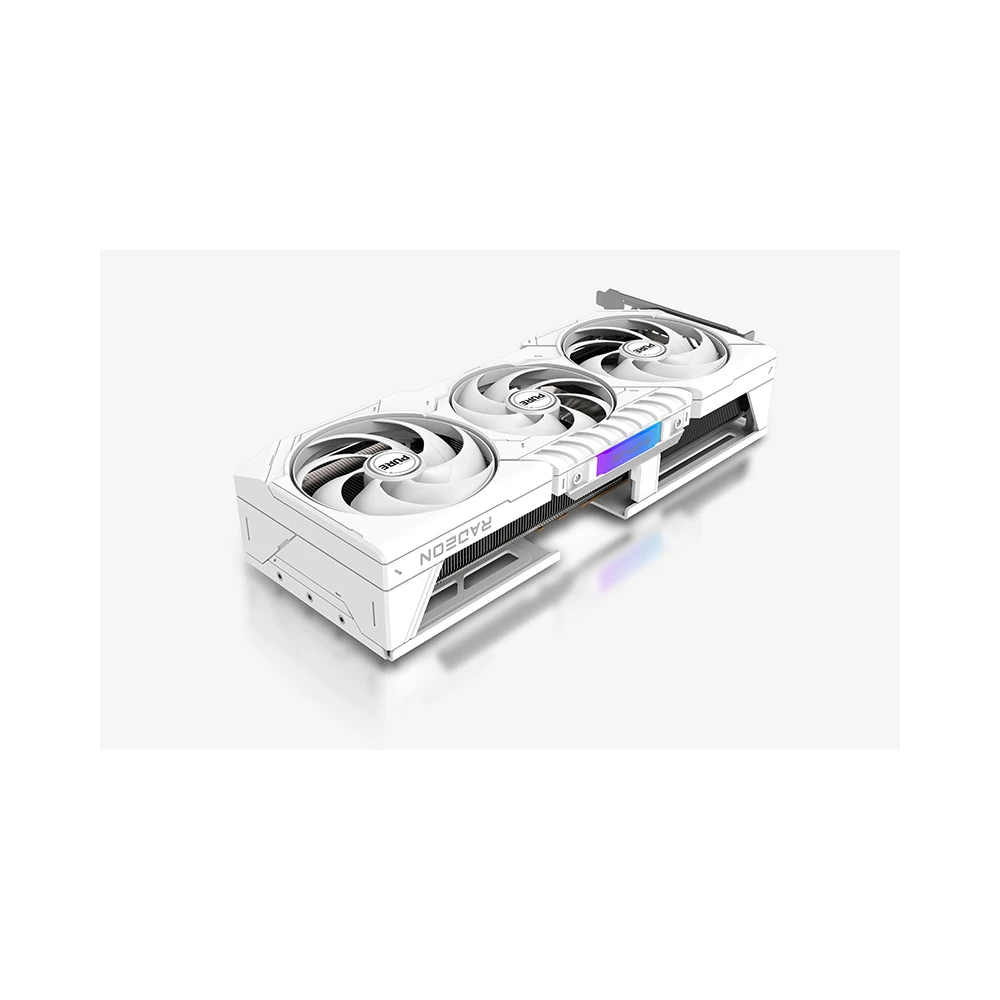

Specifications: AMD Radeon™ RX 9070 XT Graphics Card
| General | |
|---|---|
| GPU Architecture | AMD RDNA™ 4 |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Ray Accelerators | 64 |
| AI Accelerators | 128 |
| Infinity Cache | 64MB |
| Game Index | 4K |
| Clock Speeds | |
| Boost Clock | Up to 3010 MHz |
| Game Clock | Up to 2460 MHz |
| Memory | |
| Memory Size | 16GB GDDR6 |
| Memory Bus | 256-bit |
| Memory Clock | 20 Gbps Effective |
| Display & Output | |
| Max Displays Supported | 4 |
| Resolution (HDMI®) | 7680×4320 |
| Resolution (DisplayPort™ 2.1a) | 7680×4320 |
| Outputs | 2x HDMI®, 2x DisplayPort™ 2.1a |
| Interface & BIOS | |
| Interface | PCI-Express 5.0 x16 |
| BIOS Support | UEFI |
| Cooling & Design | |
| Cooler Type | Tri-X Cooling with AeroCurve Fan Blade, Free Flow, and Integrated Cooling Module |
| Fan Features | Two-Ball Bearing Fans, Intelligent Fan Control, Precision Fan Control |
| Heat Dissipation | High TG Copper PCB, Optimized Composite Heatpipes |
| Build | Metal Backplate, 14-Phase Digital Power Design, FrameDefense, Fuse Protection |
| Thermal Interface | Honeywell PTM7950 TIM |
| Form Factor | 3 Slot, ATX |
| Dimensions | 320 (L) x 120.25 (W) x 61.6 (H) mm |
| Sapphire Features | |
| Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Tri-X Cooling Technology, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, Two-Ball Bearing Fans, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, Performance vs. Efficiency Quicksets, Glow!, TriXX Boost, External RGB LED MB Synchronization | |
| AMD Technologies | |
| AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, AMD Radiance Display™ Engine, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AV1 Encode/Decode, Microsoft® DirectX® 12 Ultimate, AMD Noise Suppression, AMD Freesync™ technology, AMD Smart Technologies, AMD Software: Adrenalin Edition™ | |
| Power & Requirements | |
| Typical Board Power | 317W |
| Power Connectors | 2 x 8-pin |
| Recommended PSU | Minimum 750W |
| System Requirements | PCIe x16 slot, 8GB RAM (16GB recommended), 64-bit OS |
| Operating System Support | |
| Windows® 10, Windows® 11, Linux® (64-bit only) | |
| Bundled Accessories | |
| L-Shape Support Bracket, 3-pin 5V ARGB Cable | |
